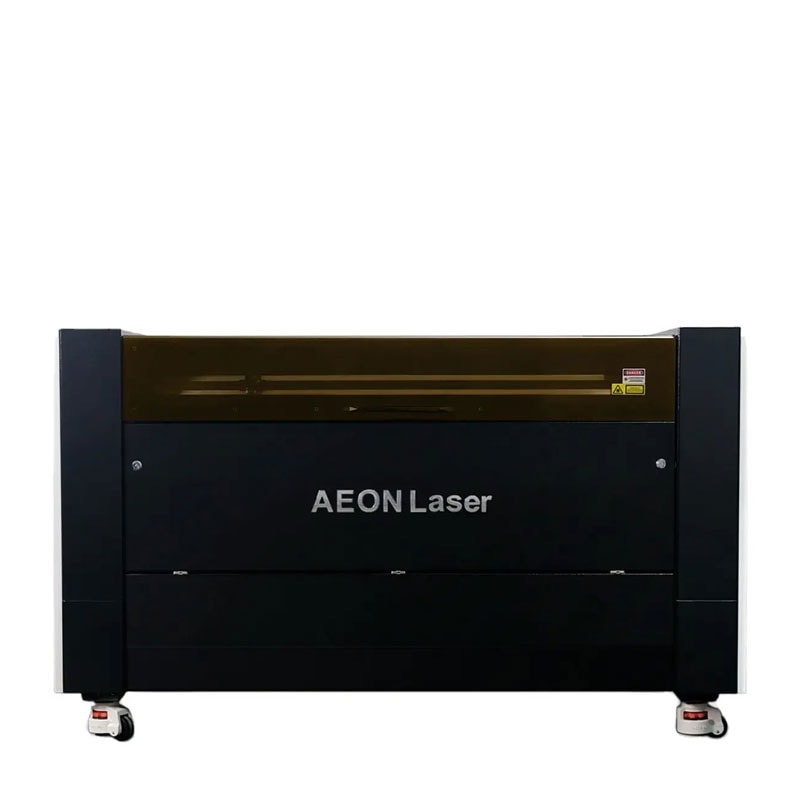

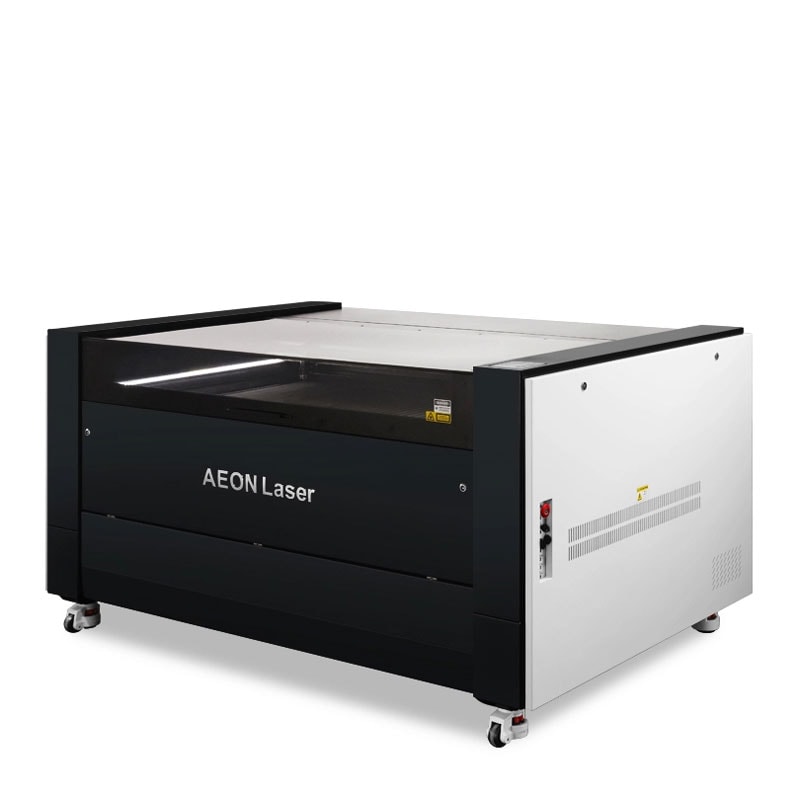

AEON SUPER NOVA 10/14/16
- Aesthetic and modern design. AEON’s distinctive machine tool design has taken the next step in the evolutionary process. Not only are the linear rails and bearing blocks enclosed (as in previous models), but also the safety curtains on the left and right side rails now prevent unwanted particles from spreading outside your working area. Enjoy greater peace of mind with a laser system you can really rely on.

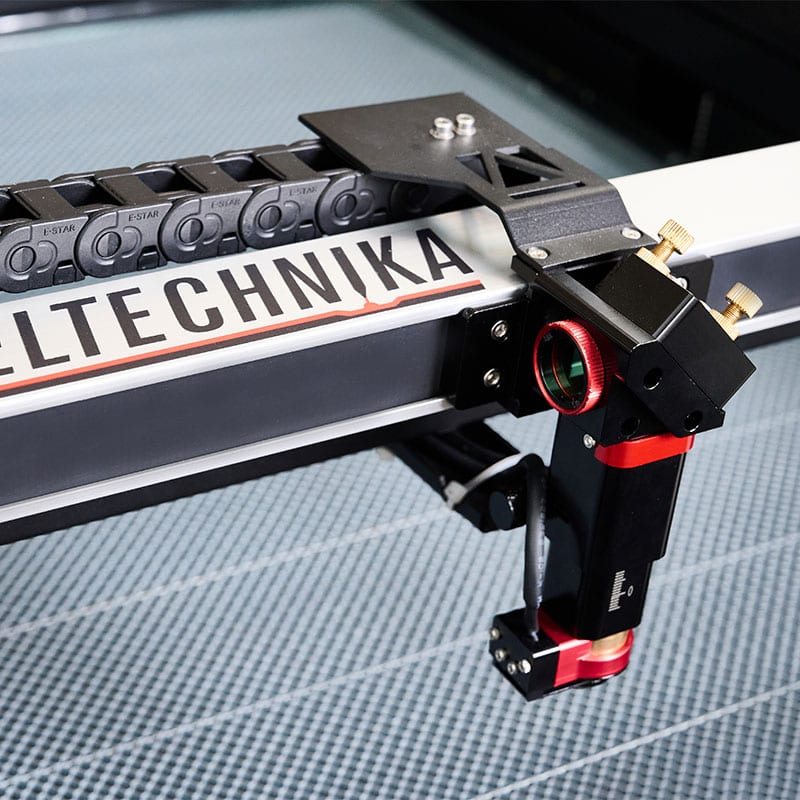

- Fastest in its class. The newly designed, lightweight AEON laser head, powered by high-speed hybrid stepper motors, is sure to leave competitors in the dust. Experience astonishing acceleration at top speeds of up to 2000 mm/s!

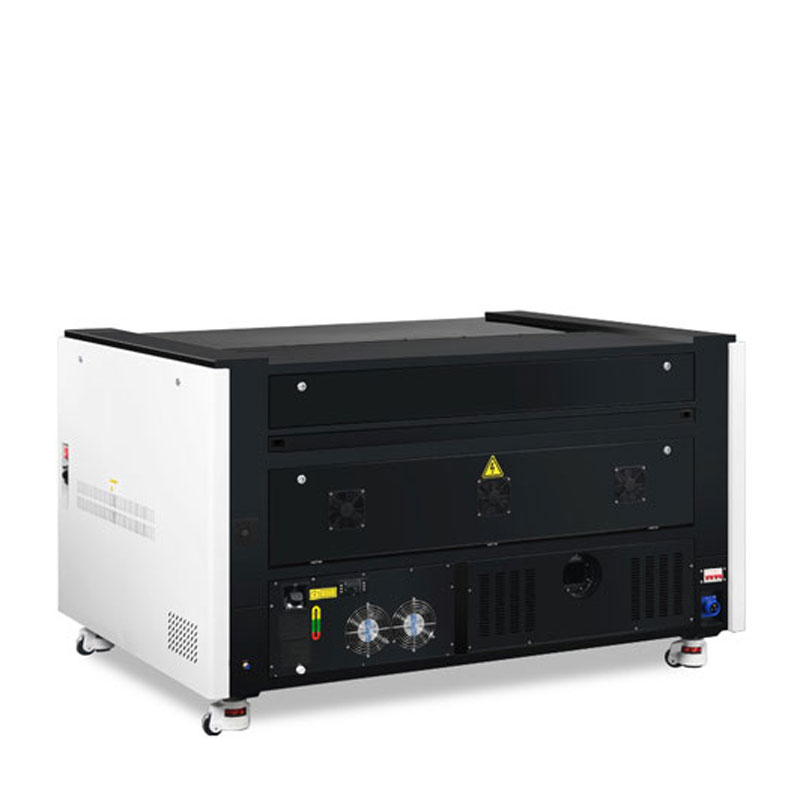

- ALL IN ONE system. Installing a large format laser in a confined space has never been more practical. Enjoy a tidy workstation with a built-in 5200 water cooler, exhaust fan and air pump inside the laser. All components are still easily accessible and can be removed for routine maintenance.

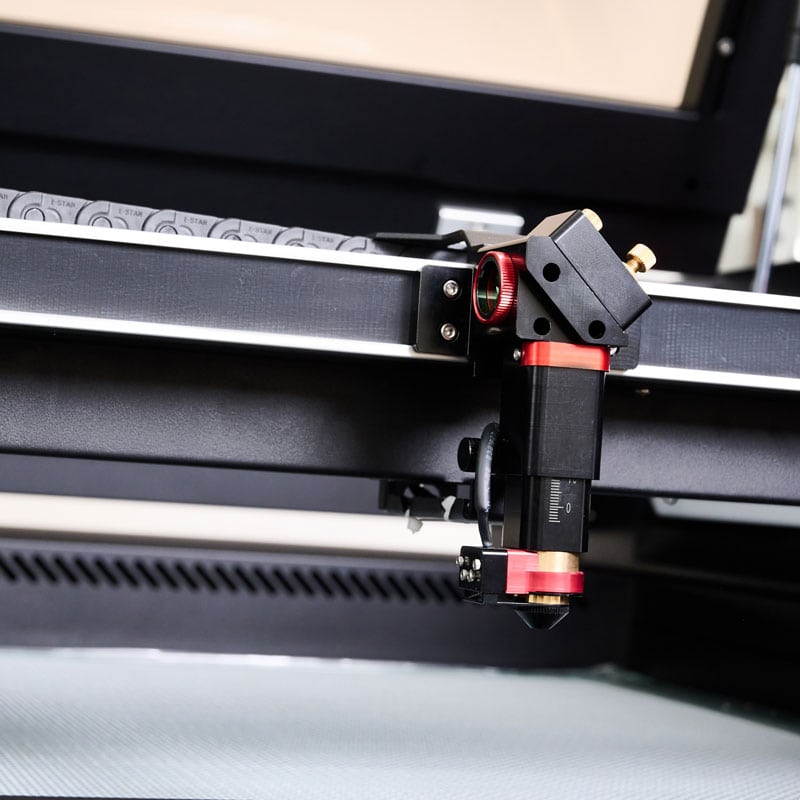

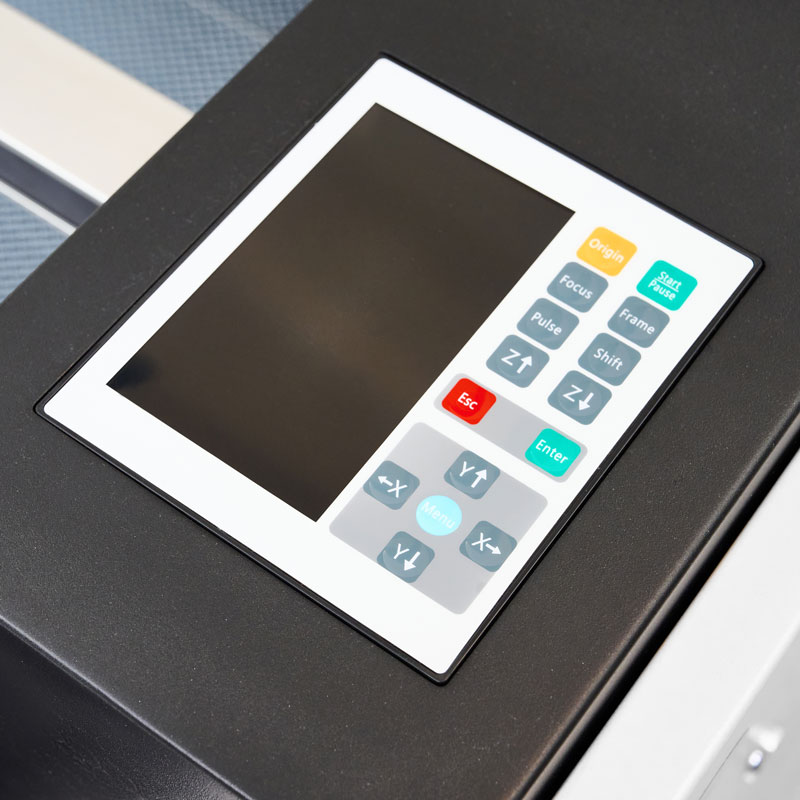

- Improved main controller. The updated Ruida controller puts the most frequently used functions directly on the control screen. Now you can make any changes to your work much faster. You can even monitor the amperage (mA) and water temperature on the display. Autofocus. The newly developed laser head has an integrated autofocus mechanism that is lighter and much more reliable. It is placed directly inside the nozzle to protect it from smoke and debris.

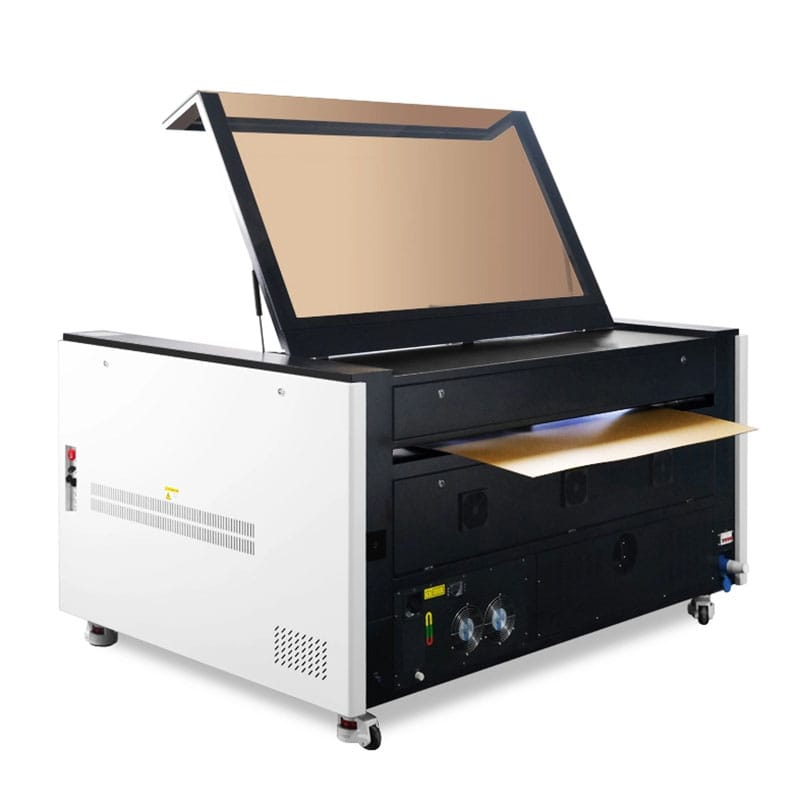

- Waste drawer. Cleaning is even easier with the newly integrated drawer. All your cut parts now go into the compartment below, which can be easily emptied to prevent scrap parts from piling up and becoming a fire hazard.
Description
- Active airflow. Say goodbye to excessive soot build-up on your material and inside the laser. Several fans are now used to pump air inside the laser, which improves the removal of smoke from the system. The more air that moves across the workbench, the cleaner the results, which means you need to spend much less time scrubbing.
- Even better return on investment (ROI)! It’s quite simple, the less time you spend in front of the laser, the higher the return on investment. With the help of a more powerful CO2 laser lamp and hybrid stepper motors, the speed of the machine has been increased to 2000 mm/s! It’s time to enjoy shorter cycle times, which means more orders fulfilled in the same time.

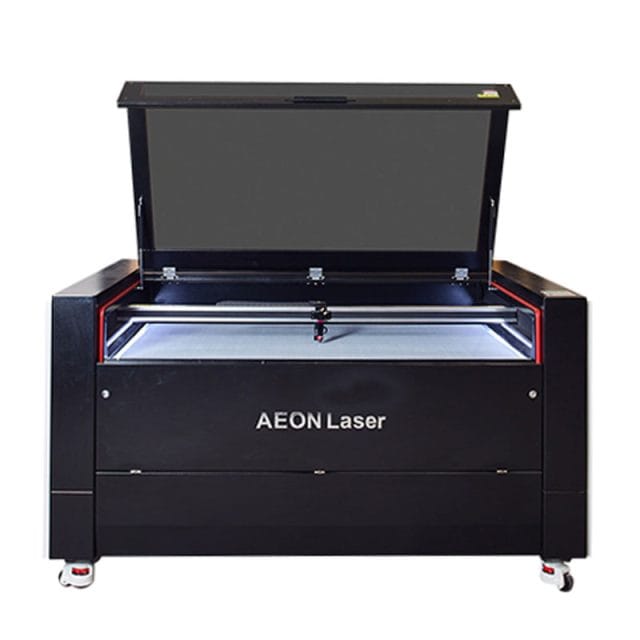

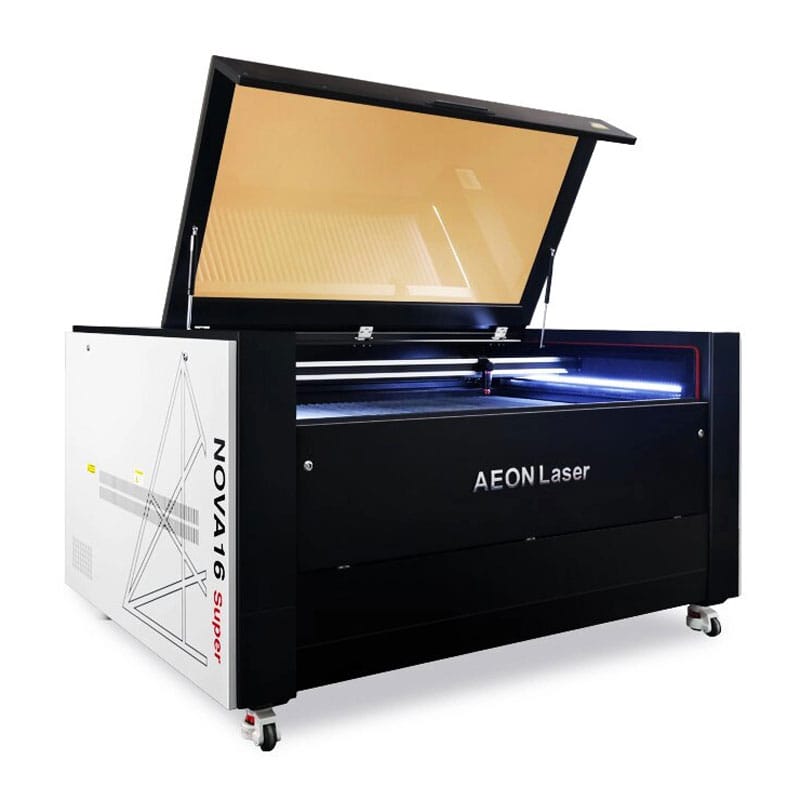

Meet Super NOVA, the newest addition to the AEON laser family! It is packed with all sorts of new enhancements that will make any laser owner fall in love. Super NOVA combines the best technology with an innovative dual laser source design. Inside the laser there is a metal RF laser source, which is characterised by its precision and speed, and a conventional CO2 laser source, which offers excellent cutting performance. The newly designed laser head will leave all competitors in the dust – the laser head can reach speeds of up to 2000 mm/s! The ALL IN ONE system improves the exhaust of the smoke by using several fans to pump air into the laser, resulting in a much cleaner result. Hybrid stepper motors, a newly developed enclosed rail system – Super NOVA is ready to take your laser engraving and cutting business to the next level.
It’s quite simple – the less time you spend in front of the laser, the better your return on investment. With the help of an RF laser and hybrid stepper motors, the speed of the machine has been increased to 2000 mm/s! It’s time to enjoy shorter cycle times, which means more orders completed in the same time.
| SPECIFICATION | |||
| MODEL | NOVA10 Super | NOVA14 Super | NOVA16 Super |
| Working area | 700×1000 mm | 900×1400 mm | 1000×1600 mm |
| Maximum motorised Z-axis height | 200 mm | 200 mm | 200 mm |
| Maximum lifting capacity | 120 kg | 120 kg | 120 kg |
| Laser type/power | DC Glass 90/100W | DC Glass 90/100/130W | DC Glass 90/100/130/150W |
| RF Metal 30/60W | RF Metal 30/60W | RF Metal 30/60W | |
| Maximum engraving speed | DC 1200 mm/s, RF 4000 mm/s | DC 1200 mm/s, RF 4200 mm/s | |
| Acceleration | 5G (DC) | ||
| 8G (RF) | |||
| Engine type | DC Stepper (DC) | ||
| AC Servo (RF) | |||
| Maximum resolution of DC source | 1000 DPI | ||
| RF source maximum resolution | 4000 DPI | ||
| Minimum size of letter engraving | 1 x 1mm (RF) | ||
| Positioning accuracy | < 0,01 mm | ||
| Cutting thickness | < 15mm (depending on material and source power) | ||
| Workbench | Cellular + special cutting work surface | ||
| Cooling | DC: Water cooler CW5000 | DC: Water cooler CW5200 | |
| RF: Air cooling | |||
| Smoke extraction fan | 500W | ||
| Intergrated air pump | 750W with 24L air capacity | 750W with 40L air capacity | |
| Autofocus | Built-in | ||
| Camera | 100° 8 megapixels | ||
| Safety classification of lasers | Class 1 laser product | ||
| Software | RDWorks (Lightburn recommended, separate paid licence) | ||
| Supported formats | DSP/PLT/BMP/DXF/AI/DWG/SVG | ||
| Machine dimensions | 1500*1210*1125 mm | 1900*1410*1125 mm | 2100*1510*1125 mm |
| Gross weight | 532 kg | 683 kg | 730 kg |
| Net weight | 415 kg | 560 kg | 566 kg |
| Power supply voltage | 220V AC 50Hz | ||
| Total power | 2300W | ||
| Rotary | Optional (Chuck/Roller) | ||
