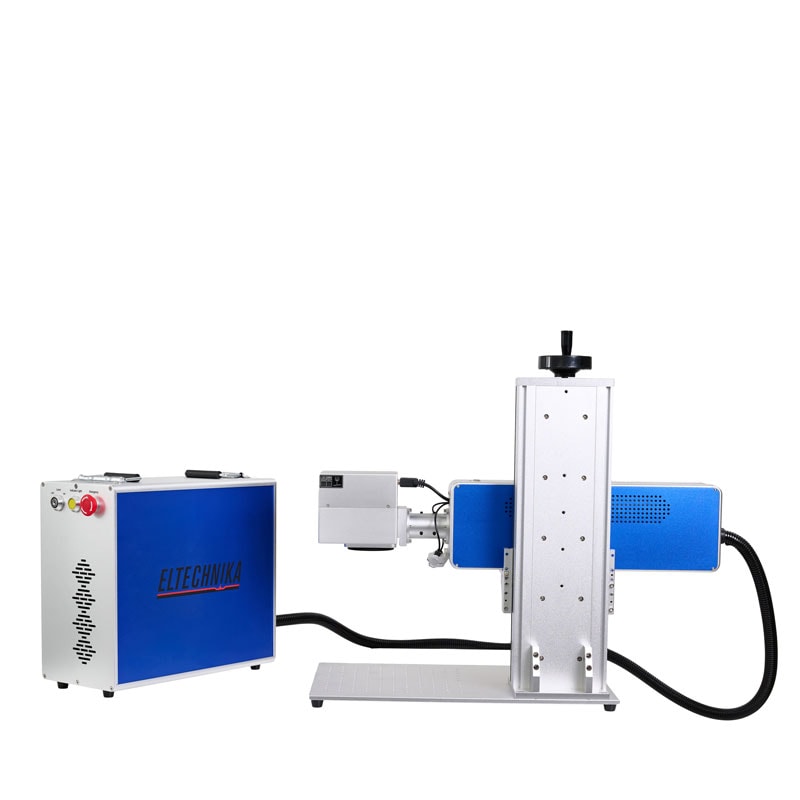

CO2 LASER MARKING ENGRAVING MACHINE
- Easy transport. Being relatively lightweight and space-saving, it is very easy to transport and find space in even the smallest room.
- High engraving speed. CO2 laser machines can reach engraving speeds of up to 7000mm/s, allowing more orders to be completed in less time.
- No need to calibrate the laser beam. The machines are set up in such a way that there is no need to calibrate the laser beam. This saves you valuable time spent calibrating the laser to get the best result you want.
- Low energy consumption. Laser machines consume a very small amount of energy even at maximum capacity. Engraving and forget about high electricity costs.
- It allows you to import popular file formats from the most popular applications. Laser machines and software support a wide variety of formats, so you won’t have to spend valuable extra time reformatting your existing files.
- Intuitive, constantly upgraded software. The software not only scans a wide variety of file formats, but is also extremely easy to use. Observations are continuously carried out to gather information on how to further improve and facilitate the use of laser machines.

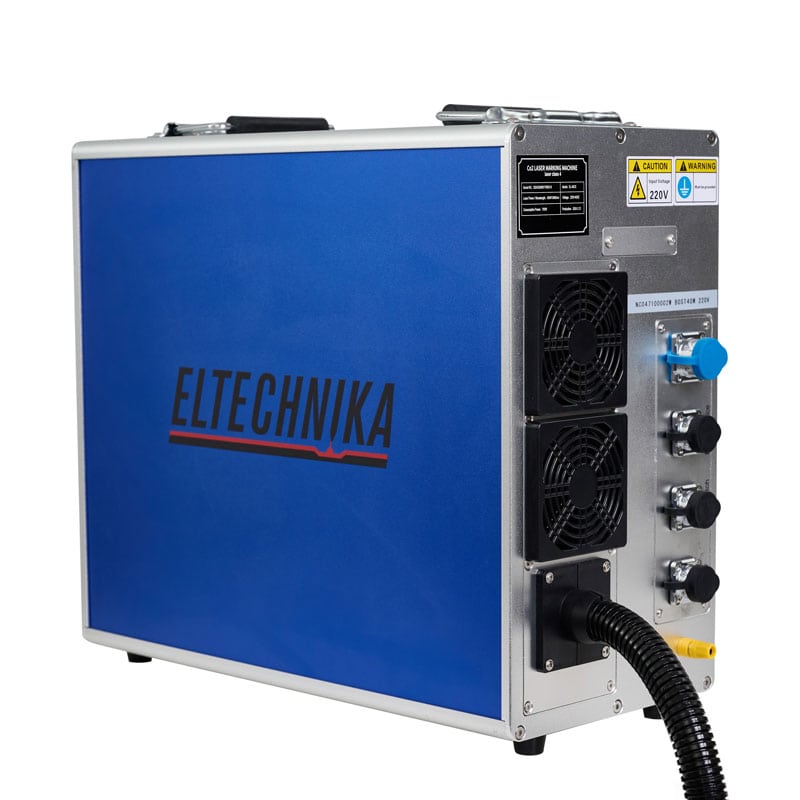

- CO2 RF metal tube. The barrel is made of strong metal, so it is quite difficult to damage. Although a laser tube is much safer, remember to use the laser according to the safety instructions.

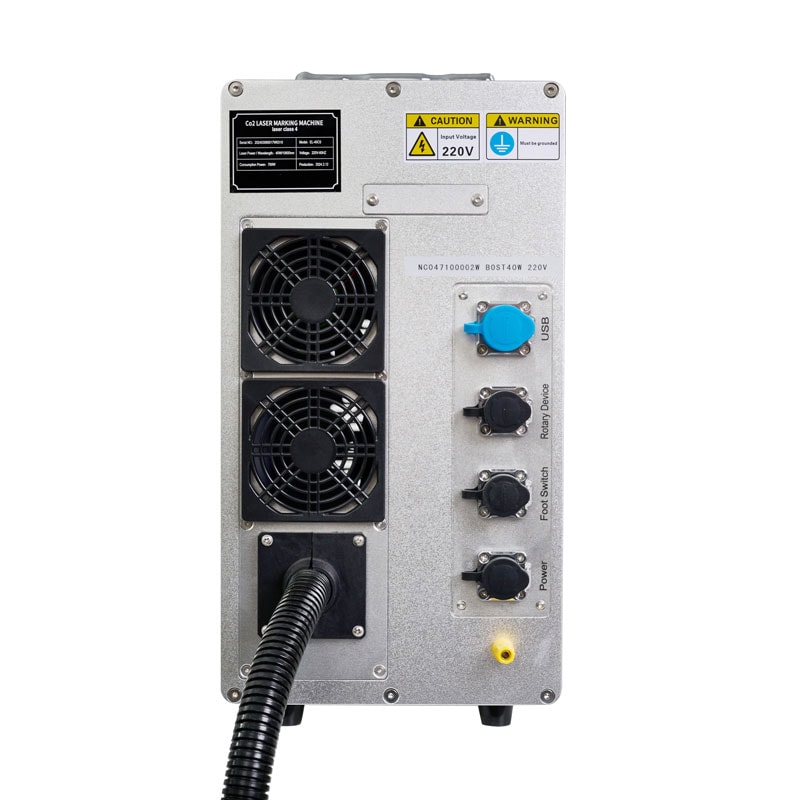

- Compatible with rotary. Our engraver has built-in support for rotary attachments with 4-pin connectors. Enjoy easy and fast engraving of rings, bracelets, cups, tubes and other cylindrical surfaces.
Description

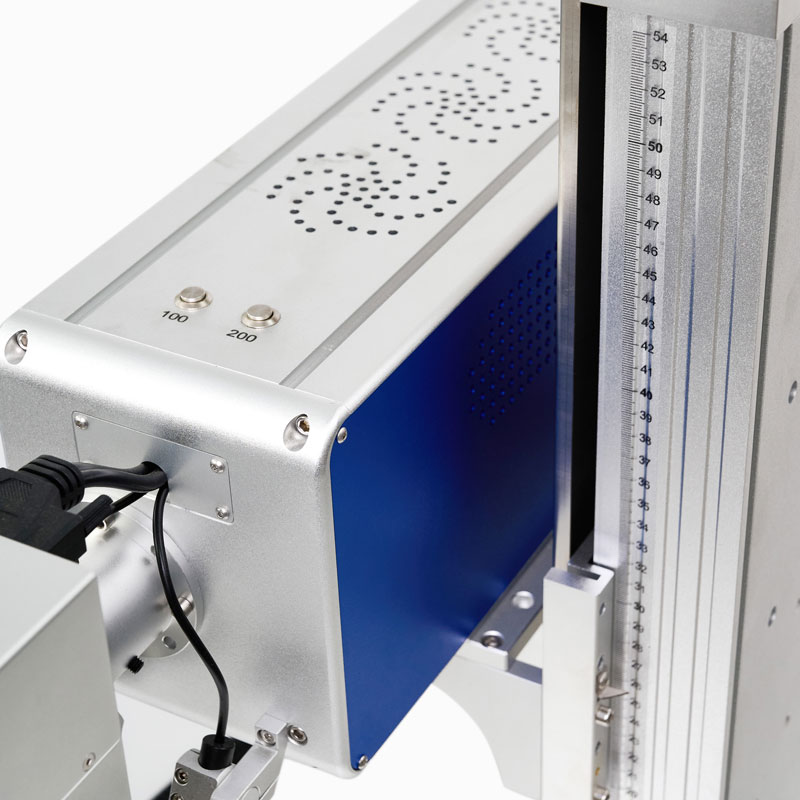

CO2 machines are used to engrave logos, trademarks, barcodes, dates or text on a variety of materials. The machines are characterised by high speed and engraving accuracy. CO2 lasers are widely used in non-metallic applications such as: engraving of clothing and shoes, medical packaging, handicrafts and gifts, marking of beverage packaging, engraving of plywood and woodwork, engraving of plastics and leather. A rotary can be used to engrave cylindrical surfaces. The focusing of CO2 laser machines has been further improved – instead of the usual two red dots, it’s now even simpler with red lines to set the right height faster than ever before. The high quality laser source will allow this laser to operate for up to 20 000 hours. The laser is lightweight and space-saving, so it’s easy to find a place for it even in the office.
SPECIFICATION | |
| Laser Source | DAVI |
Laser Power | 30W, 40W, 45W, 50W, 60W |
| Pulse Range | 1 – 500kHz |
Engraving Speed | 0 – 7000mm/s |
| Minimum Line Thickness | >0.01mm |
Laser Wavelength | 10.6um |
| Working Field | 100x100mm, 140x140mm, 150x150mm, 300x300mm |
Cooling | Air |
| Laser Source Lifetime | Up to 20 000 hours |
Power Supply Voltage | 230VAC, 50-60Hz |
| Energy Consumption | <= 500W |
Temperature / Humidity Level | 0~35°C / 10~95% |
| Machine Tool Dimensions and Weight | 660x240x500mm, 35kg |
Software | EzCAD (LightBurn Pro recommended, separate paid licence) |
| Supported File Formats | AI, PLT, DXF, BMP, DWG, DXP, PNG, JPG etc. |
Suitable Materials | Wood, plywood, leather, plastic, acrylic, rubber, glass, crystals, ceramics, paper, cardboard, ABS, jeans, clothing, polymers, etc. |
| Rotary | Additional Option (for rings, pens, Chuck, etc.) |
