S Series: Diode Laser Cutting/Engraving Machine
The xTool S series is an affordable, convenient and most versatile diode laser. They are ideal for beginners and enthusiasts who want to try engraving and cutting at home or in a small workshop.
With the S-series lasers, you can easily process wood, plywood, acrylic, leather, paper and many other materials. Ease of use and compact size allow you to quickly start creating even without previous experience.
Description

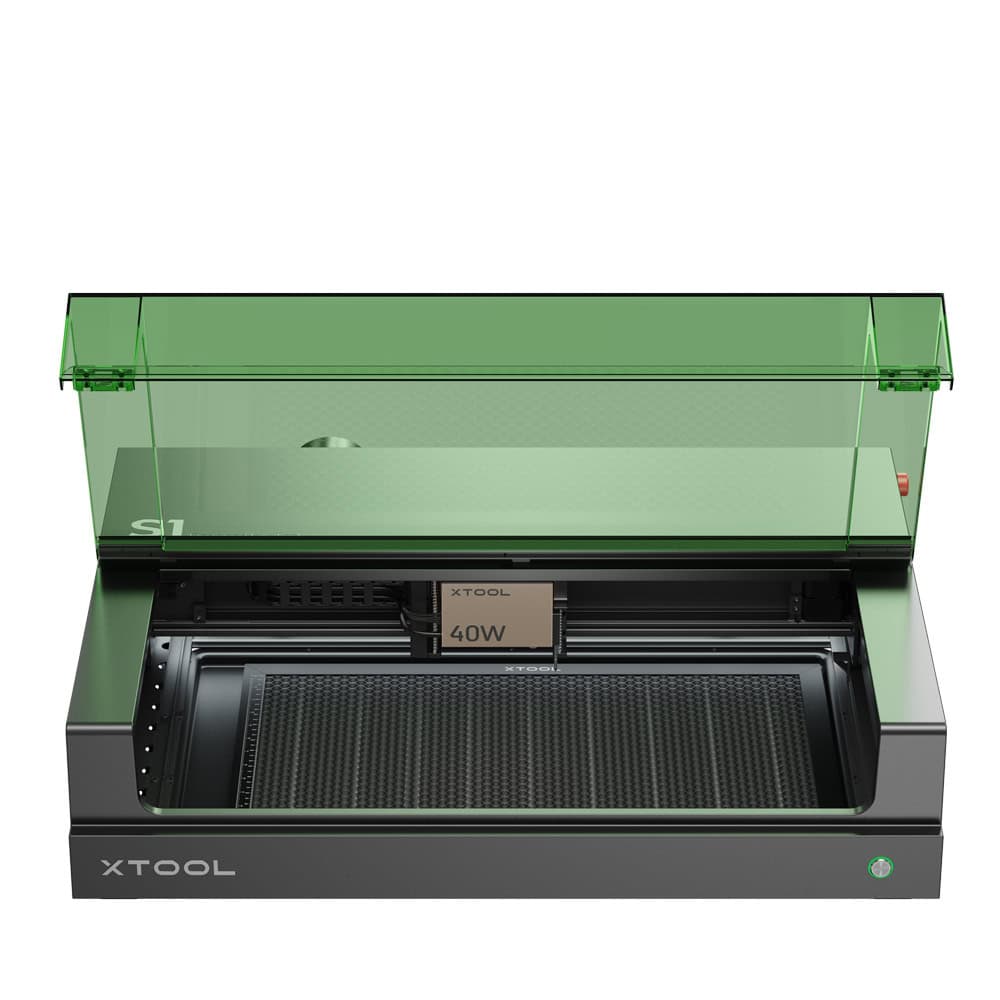

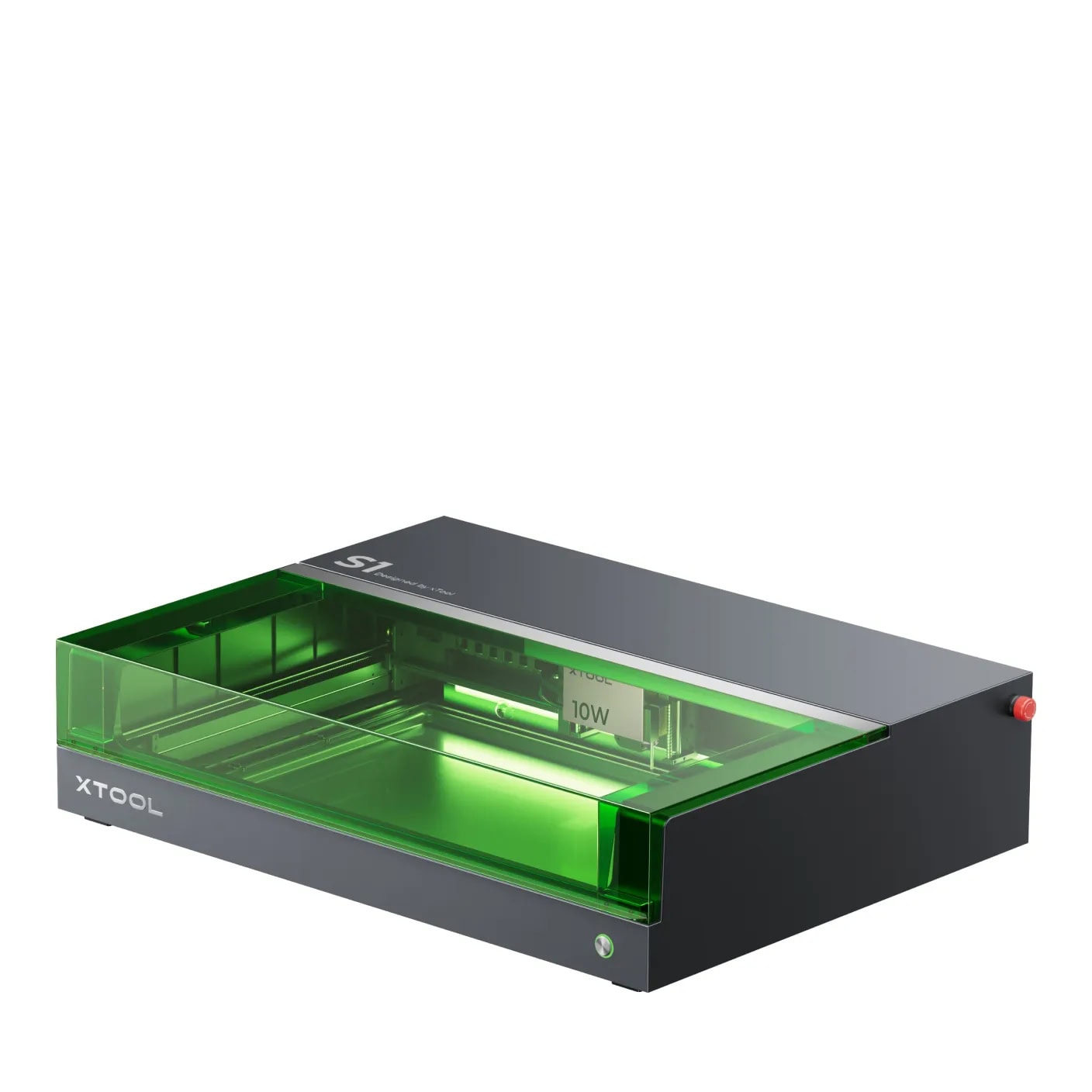

xTool S1 – Closed-Type Diode Laser for Creation and Production
xTool S1 is the world’s first closed-loop diode laser designed for maximum safety, accuracy and convenience. Its innovative technologies allow it to reach a new level for both hobby and small business.
📍 Pin-point™ Positioning
Precision at a new level
The S1 is equipped with revolutionary Pin-point Positioning™ technology, which is as accurate as 10 times more accurate than single-camera systems. It helps to easily carry out delicate engraving work, eliminates errors and losses that occur due to inaccurate positioning.
- Square pencil
- Round hat sticker
- Polygon Keychain
Snapshot and batch fill
Take a photo of the subject, transfer it to the app, and use Smart Fill with a single click – the system automatically and accurately distributes designs for mass production.
🗺️ 3D Curve™ Engraving
Precision on every surface
A built-in 3D sensor scans the shape of an object and generates three-dimensional data. The laser beam adapts to the surface, making the engraving uniform and sharp even on uneven, curved or irregular products.
Perfect for:
- For curved wooden boxes
- For round stones
- For irregular surfaces
🛡️ Safety Features
Safety first
- Closed design – protection against laser radiation and smoke.
- Automatic stop – when the lid is opened, the laser switches off immediately.
- Smoke extraction – integrated ventilation and the ability to connect air filtration devices.
- CE certification – complies with European safety standards.
🔄 Interchangeable Laser Modules
One system – many possibilities
- Diode modules (10W, 20W, 40W) – for wood, acrylic, leather, paper, textiles.
- IR module (1064 nm, 2W) – for metals and special plastics.
Replacement occurs quickly, without complicated calibration.

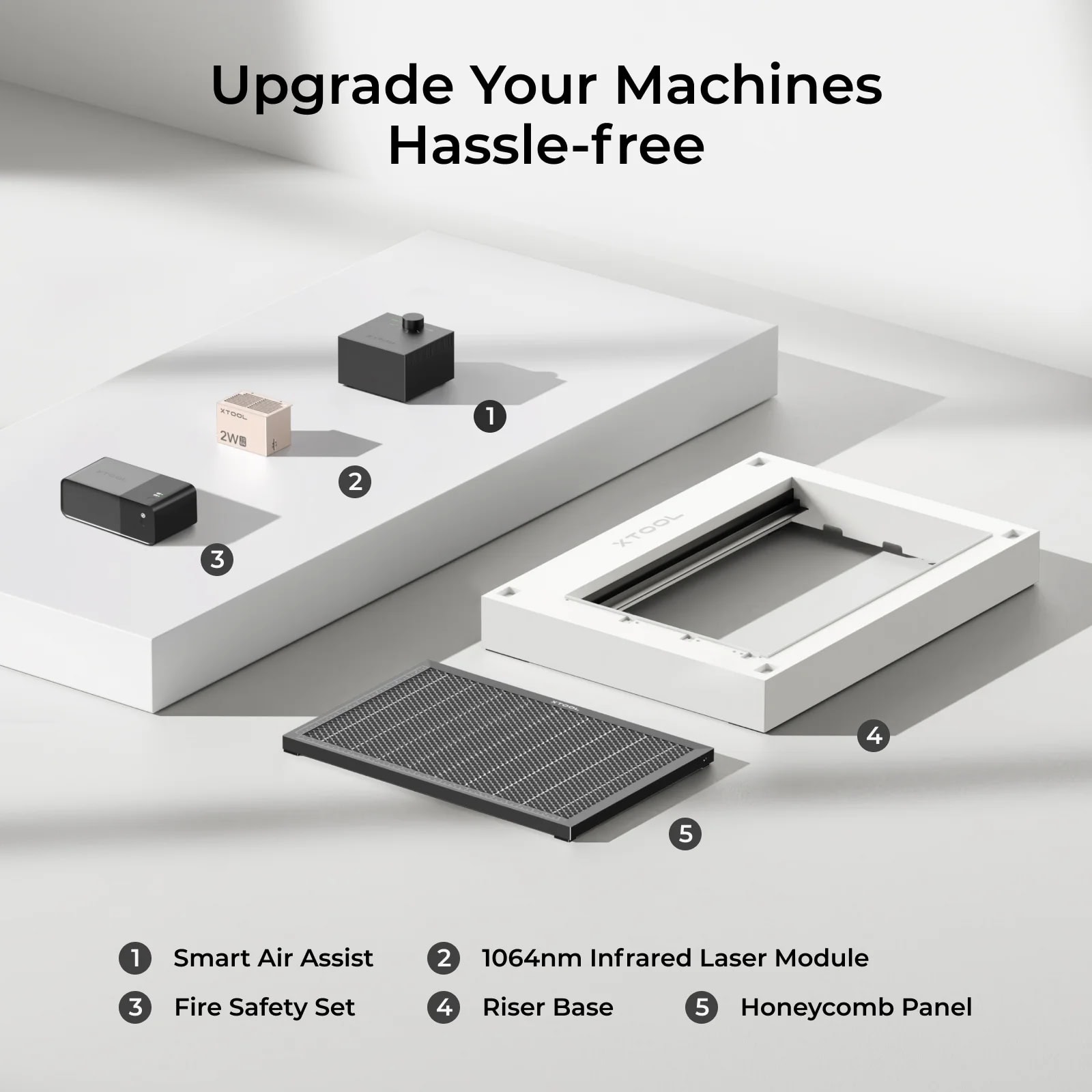

📦 Expandable Working Area & Accessories
Adapts to the size of your projects
- Riser Base – for larger objects.
- Conveyor Feeder – for long sheets and mass production.

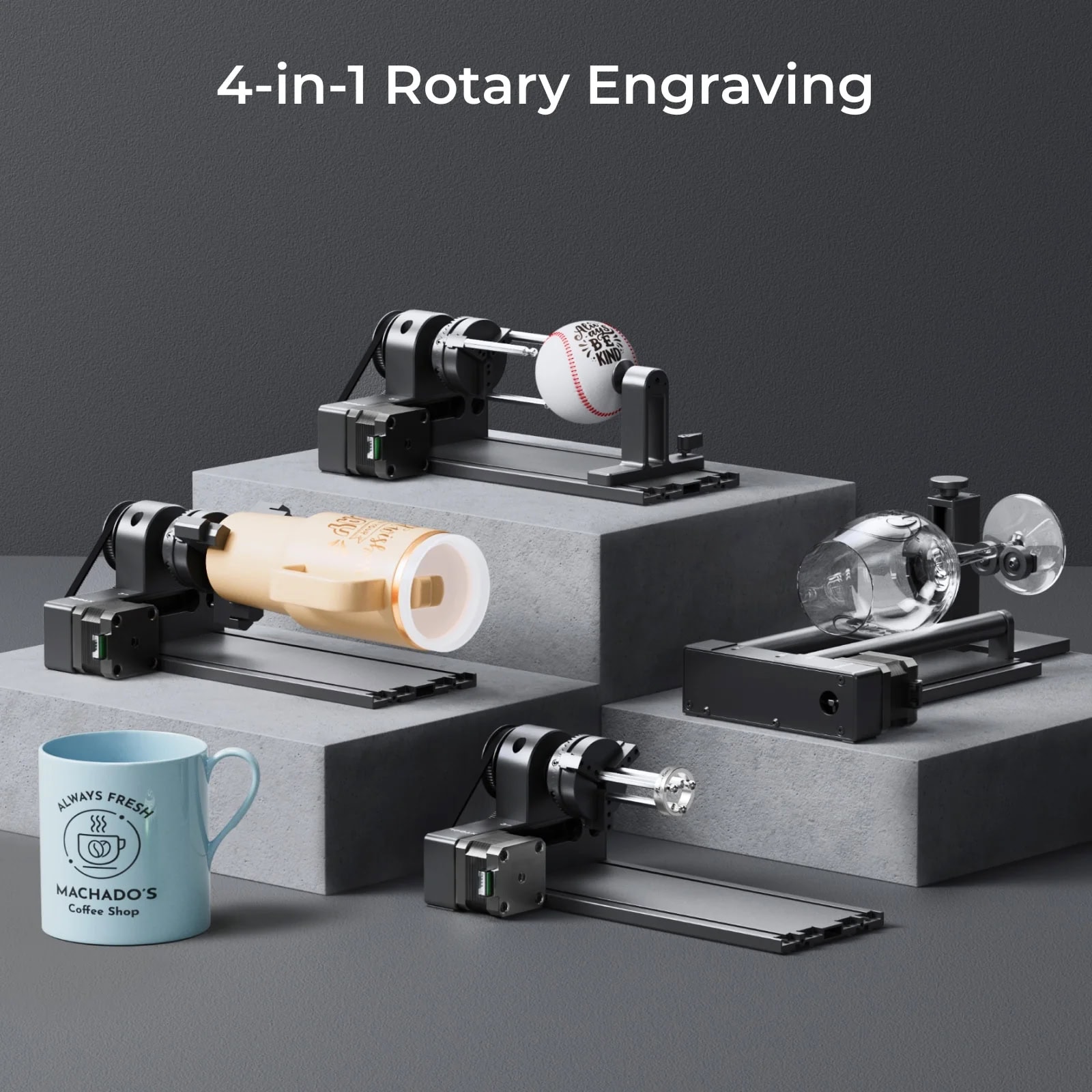

- RA2 Pro rotary system – for cylindrical and conical objects.
- Air Assist and Smoke Purifier for cleaner cutting and a healthier working environment.
🧰 Ease of Use & Software
Simple operation
- xTool Creative Space is a free, user-friendly program.
- LightBurn – for professionals with advanced features.
- Connection: USB, Wi-Fi, Ethernet.
S1 supports Windows, macOS, and Linux.
⚙️ Technical specifications
| Setting | Value |
|---|---|
| Laser | Diode laser (455 nm), optional IR module (1064 nm) |
| Power | 10 W / 20 W / 40 W (diode), 2 W (IR module) |
| Working area | 498 mm × 319 mm |
| Maximum Object Height | 70 mm (without Riser Base), 125 mm (with Riser Base), Unlimited Length with Conveyor Feeder |
| Accuracy | ±0.01 mm |
| Maximum speed | 600 mm/s |
| Supported Materials (Diode) | Wood, plywood, acrylic, leather, paper, cardboard, textiles |
| Supported Materials (IR Module) | Metals (steel, titanium, aluminum, etc.), plastics (ABS, PC, PET, TPU, etc.) |
| Software | xTool Creative Space, LightBurn |
| Connection | USB/Wi-Fi/Ethernet |
| Compatibility | Windows / macOS / Linux |
| Dimensions | 765 × 561 × 183 mm |
| Weight | ~20–22 kg |
| Security features | Closed structure, automatic stop, smoke extraction, CE certification |

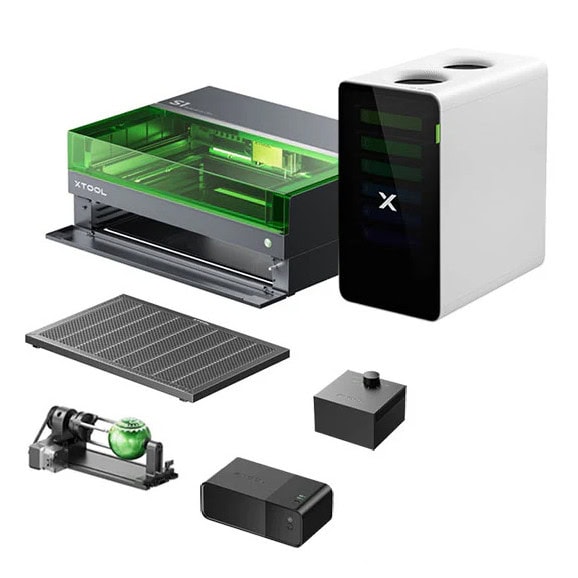

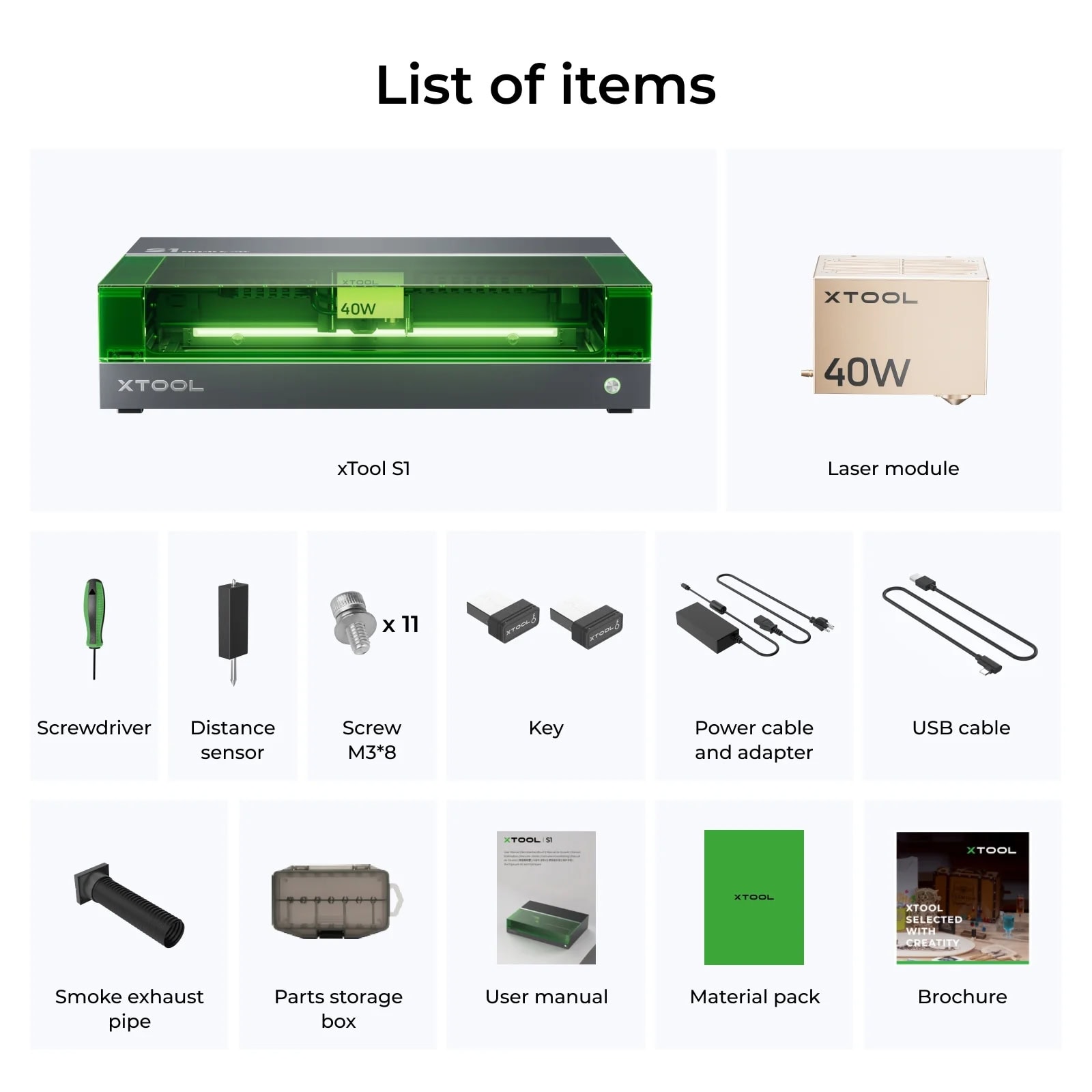

Available kits:
 |  |  |  |
| Standalone | Basic set | Deluxe bundle | All in One bundle |
| S1 device with selected diode module (10/20/40 W). You choose accessories separately. | + honeycomb for cutting and air compressor | In addition to Basic, there is a Riser Base and RA2 Pro rotary system for cylindrical objects. | Complete set: Deluxe + Conveyor Feeder for long workpieces and Smoke Purifier smoke filtration for indoor work. |
Additional information
| Use cases | cutting, engraving |
|---|
